ZONCN NZ200 Series Econonic Vector control inverter
Company introduction

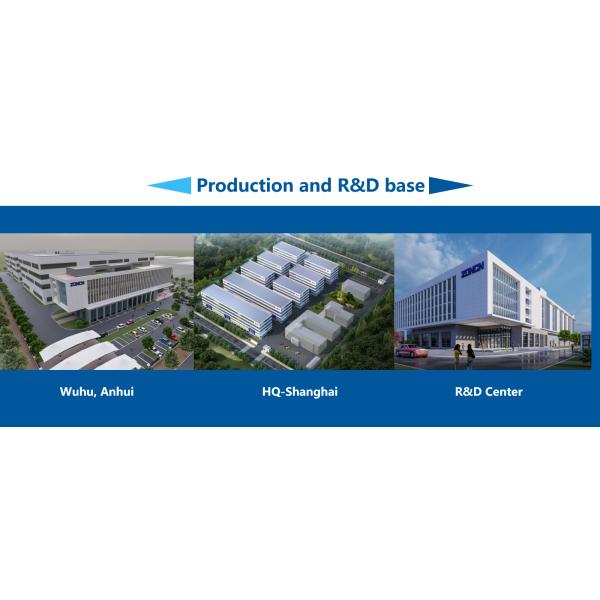

ZONCN, a professional inverter manufacturer which was established in 2006. Our factories both located in Shanghai and Wuhu city. The voltage ranges from 110v to 1140v, powers range from 0.4kw to 1000kw. Our factory has passed ISO 9001 quality control system and all the products have CE certification. Our annual sales quantity is more than 1 Million units.
At present, NZ100, NZ200, Z2000, Z8000, T9000 and Z5000-BF(IP65/IP54 protection), are ZONCN's general series of inverter, which are widely used in various applications, such as conveyor, water treatment, textile, CNC machine, fan and pump, packaging and printing, injection&extrusion machines, industrial washing machine, air compressor and many other industrial applications.
ZONCN will always warmly welcome you to visit our factory for business negotiation and cooperation.
Inverter Nameplate Description
Inverter Specification
| Model | Input Voltage (V) | Rated output power ( KW) | Rated input current(A) | Rated output current (A) | Motor power ( KW) |
| NZ200-0R4G-2 | 1PH 220V±15% | 0.4 | 5.4 | 2.5 | 0.4 |
| NZ200-0R75G-2 | 0.75 | 7.2 | 5 | 0.75 |
| NZ200-1R5G-2 | 1.5 | 10 | 7 | 1.5 |
| NZ200-2R2G-2 | 2.2 | 16 | 11 | 2.2 |
| NZ200-3R7G-2 | 3.7 | 17 | 16.5 | 3.7 |
| NZ200-0R4G-4 | 3PH 380V±15% | 0.4 | 3.4 | 1.2 | 0.4 |
| NZ200-0R75G-4 | 0.75 | 3.8 | 2.5 | 0.75 |
| NZ200-1R5G-4 | 1.5 | 5 | 3.7 | 1.5 |
| NZ200-2R2G-4 | 2.2 | 5.8 | 5 | 2.2 |
| NZ200-3R7G/5R5P-4 | 3.7 | 10.7 | 9 | 3.7 |
| NZ200-5R5G/75R5P-4 | 5.5 | 14.6 | 13 | 5.5 |
| NZ200-7R5G/11P-4 | 7.5 | 20 | 17 | 7.5 |
| NZ200-11G/15P-4 | 11 | 26 | 25 | 11 |
| NZ200-15G/18.5P-4 | 15 | 35 | 32 | 15 |
| NZ200-18.5G/22P-4 | 18.5 | 38 | 37 | 18.5 |
| NZ200-22G/30P-4 | 22 | 46 | 45 | 22 |
| NZ200-30G/37P-4 | 30 | 62 | 60 | 30 |
| NZ200-37G/45P-4 | 37 | 76 | 75 | 37 |
| NZ200-45G/55P-4 | 45 | 90 | 90 | 45 |
| NZ200-55G-4 | 55 | 105 | 110 | 55 |
| NZ200-75G/90P-4 | 75 | 140 | 150 | 75 |
| NZ200-90G/110P-4 | 90 | 160 | 176 | 90 |
| NZ200-110G/132P-4 | 110 | 210 | 210 | 110 |
| NZ200-132G/160P-4 | 132 | 240 | 253 | 132 |
| ... | ... | ... | ... | ... |
| NZ200-450G/500P-4 | 450 | 790 | 790 | 450 |
Inverter Dimension
A. 0.4kw-37kw
B. 45kw-450kw
Inverter Packing
Inverter Application
Inverter Recommendation
